Woodworking Spiral Cutter Head Insert

Name: Woodworking Spiral Cutter Head Insert
Brand: High Performance Carbide Cutting Tools - DOMA
Availability: InStock
Rating: 5 (1 reviews)

DOMA woodworking spiral cutter head inserts are made from high-quality sintered tungsten carbide and precisely ground to within 0.01mm for superior durability and cutting precision. These rectangular inserts feature two cutting edges, designed primarily for heavy-duty cutting shafts, scraper blades, and combination tool heads. The high wear resistance and extended service life—up to 120% longer than conventional steel blades—make these inserts an ideal choice for professional woodworking and industrial applications. Compatible with a wide range of equipment and accessories in the market.

INQUIRY PDF Format

Description

Outline

Product Name	Woodworking Spiral Cutter Head Insert
Brand	DOMA
Manufacturer	CHENGDU DOMA CARBIDE TOOLS CO.,LTD.
Product Dimensions	Standard or Customized
Product Material	Solid Tungsten Carbide By Sinter-HIP
Tolerance	According to customer requirements
OEM	Available
Sample	Available

Specification

DOMA CARBIDE SPIRAL CUTTER HEAD INSERT TYPE SPECIFICATION LIST

Metric Size Standard

Specification	L	W	T	a
Specification	mm	mm	mm	a
5x12x1.5-Ø4	5.5	12	1.5	30°/35°
5x12x1.5-Ø4	7.5	12	1.5	30°/35°
6x12x1.5-Ø4	9.6	12	1.5	30°/35°
5x12x1.5-Ø4	15	12	1.5	30°/35°
0x12x1.5-Ø4	20	12	1.5	30°/35°

♦ Doma carbide tools only show the commonly used spiral cutter head insert specifications, if you want more other specification of spiral cutter head insert, you are welcome to contact us. At the same time, Doma accepts drawing or sample customization.

Applications

1.Primarily used in spiral cutter heads for heavy-duty cutting applications

2.Suitable for scraper blades and combination cutterheads in woodworking and panel processing

3.Ideal for applications in planers, moulders, CNC routers, and woodworking machinery

4.Commonly used for precision cutting of hardwood, softwood, MDF, and other engineered wood products

5.Compatible with most standard woodworking equipment and accessories on the market

Advantages

1.Tungsten Carbide Material
Manufactured from sintered tungsten carbide, offering exceptional hardness, wear resistance, and longevity for high-performance cutting.

2.Dual Cutting Edges
Each insert features two sharp cutting edges, which can be rotated for extended use, maximizing tool life and reducing downtime.

3.Precision Ground to 0.01mm
The high-precision grinding ensures tight dimensional tolerances, resulting in consistent and smooth cutting performance.

4.120% Longer Lifespan
The carbide material significantly extends tool life compared to traditional steel inserts, making them ideal for heavy-duty and continuous production.

Next Product

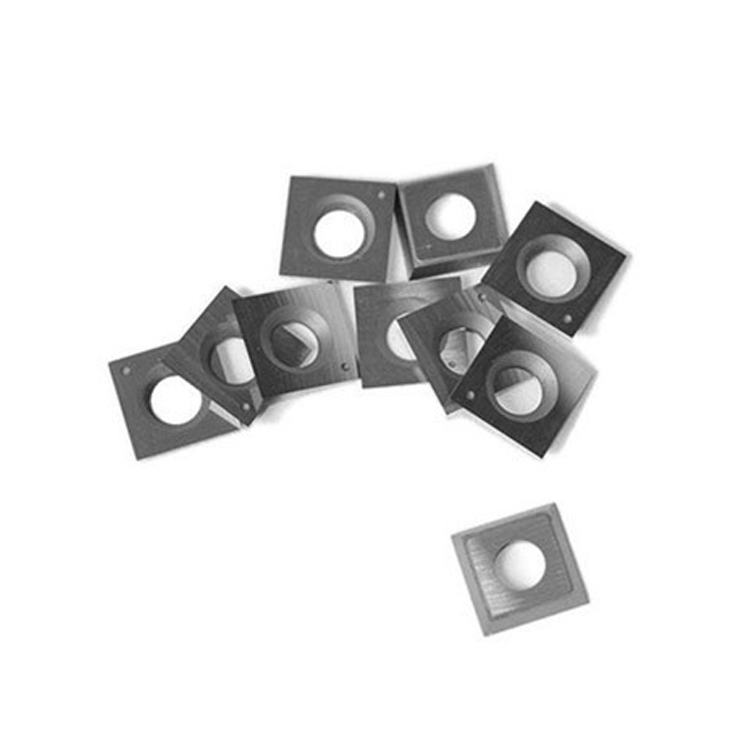

Woodworking Carbide Reversible Blade
