Brand |
DOMA |
|---|---|
|
Manufacturer |
CHENGDU DOMA CARBIDE TOOLS CO.,LTD. |
|
Product Dimensions |
Standard or Customized |
|
Cutting Head Material |
Tungsten Carbide By Sinter-HIP |
|
Shank Material |
40Cr Steel |
|
Welding Method |
Silver-alloy Brazing |
|
Hot Selling Models |
D1009, D1210, SD-3, SD-5 |
|
OEM |
Available |
|
Free Sample |
Available |
|

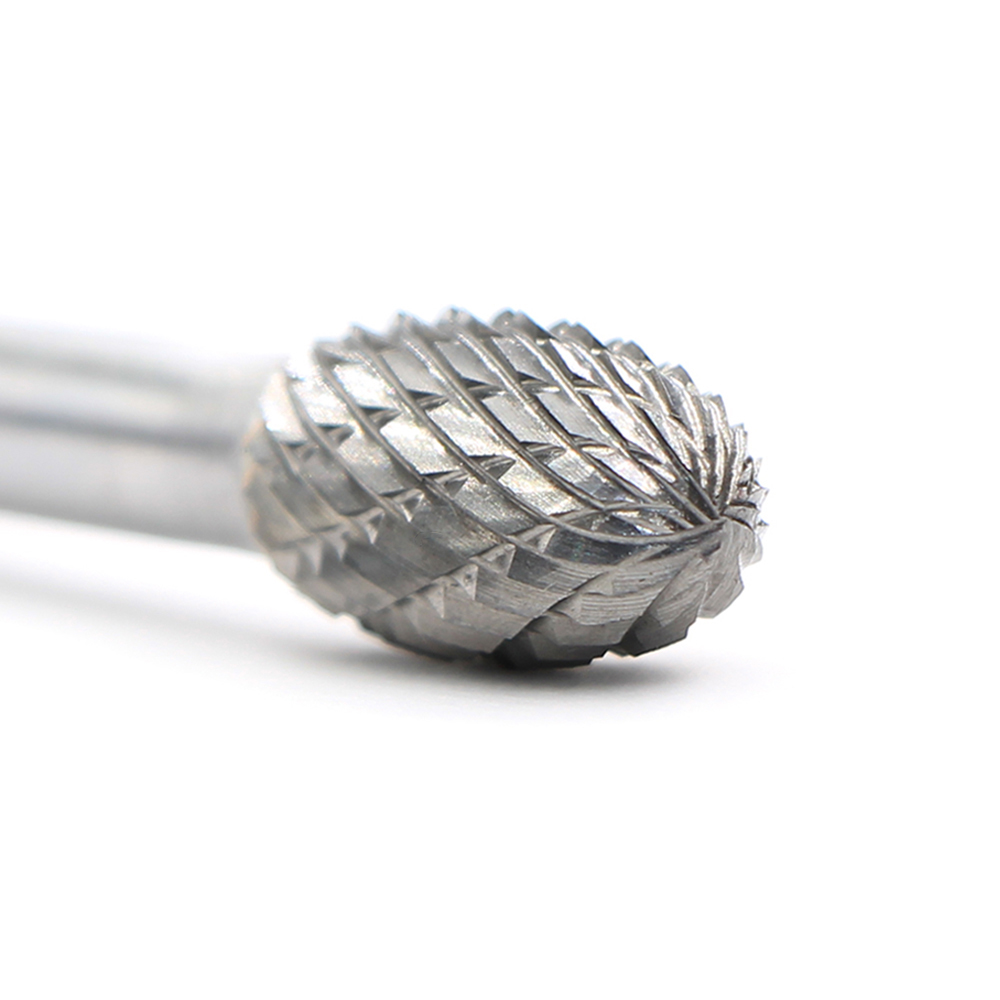

CARBIDE BALL BURR |
|||||
|---|---|---|---|---|---|
|
Drawing |
Diagram of Application |
||||
|
|
|
||||
|
Metric Standard |
|||||
|
Shank Dia. (mm) |
Cutter Dia. (mm) |
Lgth. of Cut (mm) |
Overall Lgth. (mm) |
Tool No. |
The Combination of Head and Shank |
|
d2 |
d1 |
l2 |
l1 |
||
|
3 |
2 |
1.8 |
38 |
D0202 |
Solid |
|
2.5 |
2.3 |
38 |
D2525 |
Solid |
|
|
3 |
2.5 |
38 |
D0325 |
Solid |
|
|
4 |
3 |
41 |
D0403 |
Brazed |
|
|
5 |
4 |
42 |
D0504 |
Brazed |
|
|
6 |
5 |
43 |
D0605 |
Brazed |
|
|
6 |
6 |
5 |
50 |
D0605 |
Brazed |
|
8 |
7 |
52 |
D0807 |
Brazed |
|
|
10 |
9 |
54 |
D1009 |
Brazed |
|
|
12 |
10 |
55 |
D1210 |
Brazed |
|
|
16 |
14 |
59 |
D1614 |
Brazed |
|
|
19 |
18 |
63 |
D1918 |
Brazed |
|
|
25 |
21 |
66 |
D2521 |
Brazed |
|
|
8 |
12 |
10 |
56 |
D1210 |
Brazed |
|
16 |
14 |
59 |
D1614 |
Brazed |
|
|
19 |
18 |
63 |
D1918 |
Brazed |
|
|
25 |
21 |
66 |
D2521 |
Brazed |
|
|
Inch Standard |
|||||
|
Shank Dia. (inch) |
Cutter Dia. (inch) |
Lgth. of Cut (inch) |
Overall Lgth. (inch) |
Tool No. |
The Combination of Head and Shank |
|
d2 |
d1 |
l2 |
l1 |
||
|
1/8 |
1/8 |
1/8 |
1-1/2 |
SD-42 |
Solid |
|
3/16 |
5/32 |
1-1/2 |
SD-53 |
Brazed |
|
|
1/4 |
7/32 |
1-3/4 |
SD-51 |
Brazed |
|
|
1/4 |
3/16 |
1/8 |
2 |
SD-14 |
Solid |
|
1/4 |
7/32 |
2 |
SD-1 |
Solid |
|
|
5/16 |
1/4 |
2 |
SD-2 |
Brazed |
|
|
3/8 |
5/16 |
2-1/16 |
SD-3 |
Brazed |
|
|
7/16 |
3/8 |
2-1/7 |
SD-4 |
Brazed |
|
|
1/2 |
7/16 |
2-1/5 |
SD-5 |
Brazed |
|
|
5/8 |
9-16 |
2-1/3 |
*SD-6 |
Brazed |
|
|
3/4 |
11/16 |
2-4/9 |
*SD-7 |
Brazed |
|
|
1 |
15/16 |
2/3 |
*SD-9 |
Brazed |
|
* If the carbide burr made by us breaks in normal use, we will double the compensation.
